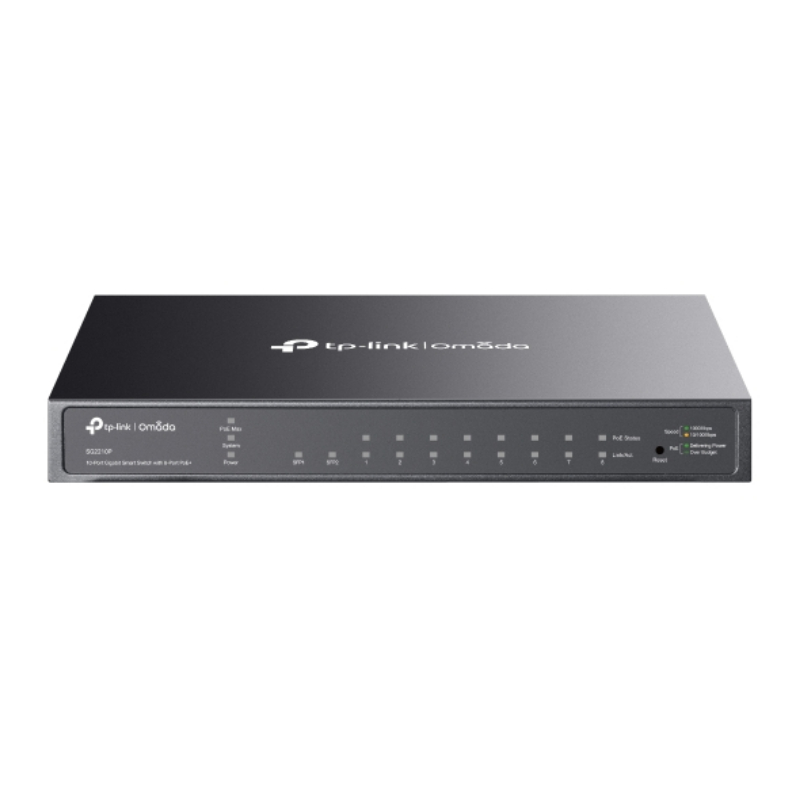

TP-LINK EASY SMART SWITCH 8 PORT 10/100/1Gbit RACK PoE+ w2 SFP

CARACTERíSTICAS DE HARDWARE. Interfaz » 8x 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX). » 2x 100/1000 Mbps SFP Slots. Cantidad de Ventiladores Fanless. Bloqueo de Seguridad Físico . Fuente de Alimentación External Power Adapter (Output: 53.5VDC/1.31A). Puertos PoE (RJ45) » Standard: 802.3af/at compliant. » PoE Ports: 8 Ports. » Power Supply: 61 W*. Dimensiones 8.2×4.9×1.0 in (209x126x26 mm). Montaje Desktop / Wall-Mounting. Consumo de Potencia Máximo 77.8 W (110 V/60 Hz) (with 61 W PD connected). Disipación máxima de calor 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected). RENDIMIENTO. Capacidad de Conmutación 20 Gbps. Tasa de Reenvío de Paquetes 14.88 Mpps. Tabla de Direcciones MAC 8K. Memoria del Buffer de Paquete 4.1 Mbit. Jumbo Frame 9 KB. CARACTERíSTICAS DE SOFTWARE. Calidad de Servicio » 802.1p CoS/DSCP priority. » 8 priority queues. » Priority Schedule Mode. – SP (Strict Priority). – WRR (Weighted Round Robin). » Queue Weight Config. » Bandwidth Control. – Port/Flow based Rating Limit. » Smoother Performance. » Storm Control. – Multiple Control Modes(kbps/ratio). – Broadcast/Multicast/Unknown-Unicast Control. Características L2 y L2+ » 32 IP Interfaces: Support IPv4/IPv6 Interface. » Static Routing: 32 IPv4/IPv6 Static Routes. » DHCP Server. » DHCP Relay. – DHCP Interface Relay. – DHCP VLAN Relay. » DHCP L2 Relay. » Static ARP. » Proxy ARP. » Gratuitous ARP. » Link Aggregation. » Spanning Tree Protocol. » Loopback Detection. » 802.3x Flow Control. » Mirroring. » Device Link Detect Protocol (DLDP). » 802.1ab LLDP/ LLDP-MED. Multicast L2 » 511 IPv4, IPv6 shared multicast groups. » IGMP Snooping. » Multicast VLAN Registration (MVR). » Multicast Filtering. » Limited IP Multicast (256 profiles and 16 entries per profile). Características Avanzadas » Automatic Device Discovery . » Batch Configuration . » Batch Firmware Upgrading . » Intelligent Network Monitoring . » Abnormal Event Warnings . » Unified Configuration . » Reboot Schedule . VLAN » VLAN Group. – Max. 4K VLAN Groups. » 802.1Q tag VLAN. » MAC VLAN: 12 Entries. » Protocol VLAN. » GVRP. » Voice VLAN. Lista de Control de Acceso » Support up to 230 entries. » Time-based ACL. » MAC ACL. » IP ACL. » IPv6 ACL. » Combined ACL. » Rule Operation: Permit/Deny. » Policy Action. – Mirroring. – Redirect. – Rate Limit. – QoS Remark. » ACL Rules Binding. – Port Binding. – VLAN Binding. Seguridad » IP-MAC-Port Binding. » AAA. » 802.1X. – Port-based authentication. – MAC (Host) based authentication. – Authentication Method includes PAP/EAP-MD5. – MAB. – Guest VLAN. – Support Radius authentication and accountability. » IP/IPv6-MAC Binding. – 512 Binding Entries. – DHCP Snooping. – DHCPv6 Snooping. – ARP Inspection. – ND Detection. » IP Source Guard. – 253 Entries. – Source IP+Source MAC. » IPv6 Source Guard. – 183 Entries. – Source IPv6 Address+Source MAC. » DoS Defend. » Static/Dynamic/Permanent Port Security. – Up to 64 MAC addresses per port. » Broadcast/Multicast/Unicast Storm Control. – kbps/ratio control mode. » Port Isolation. » Secure web management through HTTPS with SSLv3/TLS 1.2. » Secure Command Line Interface (CLI) management with SSHv1/SSHv2. » IP/Port/MAC-based access control. IPv6 » IPv6 Static Routing and ACL. » IPv6 Dual IPv4/IPv6. » IPv6 Interface. » Multicast Listener Discovery (MLD) Snooping. » IPv6 neighbor discovery (ND). » Path maximum transmission unit (MTU) discovery. » Internet Control Message Protocol (ICMP) version 6. » TCPv6/UDPv6. » IPv6 applications. – DHCPv6 Client. – Ping6. – Tracert6. – Telnet(v6). – IPv6 SNMP. – IPv6 SSH. – IPv6 SSL. – Http/Https. – IPv6 TFTP. MIBs » MIB II (RFC1213). » Bridge MIB (RFC1493). » P/Q-Bridge MIB (RFC2674). » Radius Accounting Client MIB (RFC2620). » Radius Authentication Client MIB (RFC2618). » Remote Ping, Traceroute MIB (RFC2925). » Support TP-Link private MIBs. » RMON MIB(RFC1757, rmon 1,2,3,9). GESTIóN. Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.. Gestión Centralizada » Omada Cloud-Based Controller. » Omada Hardware Controller. » Omada Software Controller. Acceso a la nube Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.. Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller. Funciones de gestión » Web-based GUI. » Command Line Interface (CLI) through telnet. » SNMPv1/v2c/v3. » SNMP Trap/Inform. » RMON (1,2,3,9 groups). » SDM Template. » DHCP/BOOTP Client. » Dual Image, Dual Configuration. » CPU Monitoring. » Cable Diagnostics. » EEE. » SNTP. » System Log. Otros. Certificaciones CE, FCC, RoHS. Contenido del Paquete » SG2210P. » Power Adapter. » Installation Guide. » Rubber Feet. Requisitos del sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista» or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.. Factores Ambientales » Operating Temperature: 0~40 (32~104);. » Storage Temperature: -40~70 (-40~158). » Operating Humidity: 10%~90% non-condensing. » Storage Humidity: 5%~90% non-condensing
